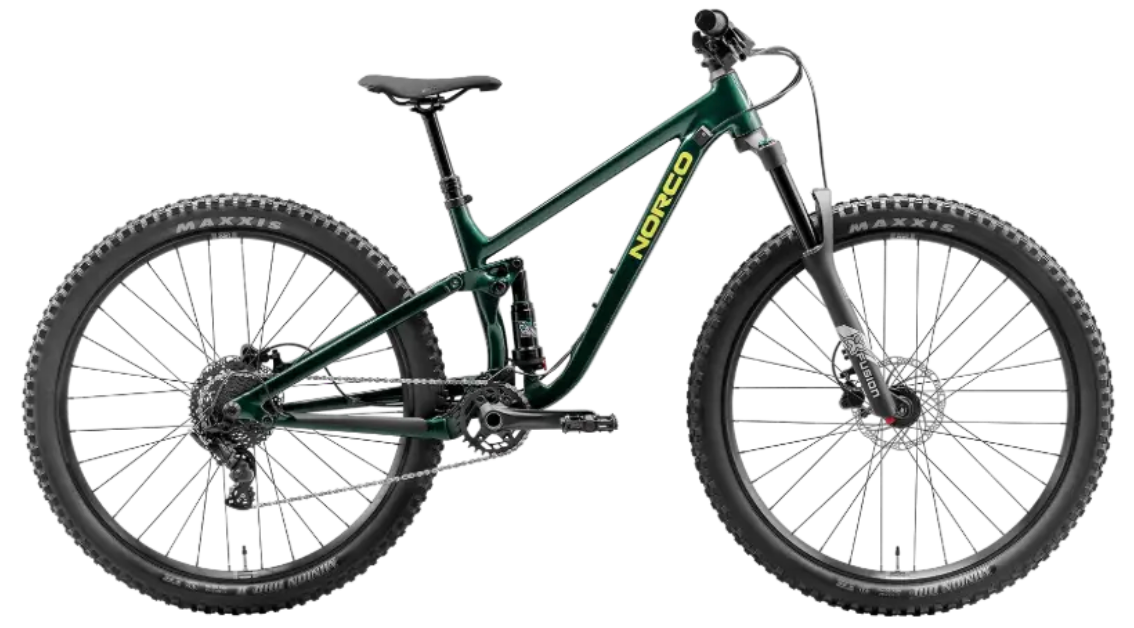

NORCO FLUID 27.5' YOUTH

The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized, and frame geometry honed to bring the distinct Norco ride to every model.

Design features
Features a lower bottom bracket height and more generous standover clearance than previous models.
A specially tuned linkage gives young riders the same level of control and suspension performance as our adult bikes.
Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so we’ve spec’d youth-specific tunes on all Fluid Youth bikes so the suspension and droppers move properly under a rider below 90 pounds.
Specifications
Prowheel Cartridge BB
Tektro HD-J285
microSHIFT Advent, 11-38T, 9spd
KMC X9, 9spd
Prowheel Junior Alloy, 30T, 155mm
X-Fusion RC32 Air, 130mm, 46mm Offset, 15x110mm Boost
6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Tektro TR160-22, 160mm, 6-bolt
Formula DC-511, 15x110mm Boost, 32h, 6-bolt
Maxxis Minion DHF, EXO, 27.5"x2.5", Folding
Norco Youth Lockon, 115mm Length
Norco 6061 Alloy DB , 750mm, 20mm rise
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Tektro TR160-22, 160mm, 6-bolt
microSHIFT Advent, 9spd, Short Cage Clutch
Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
X-Fusion 02 Pro R, 190x42.5mm Standard
Maxxis Minion DHR II, EXO, 27.5" x 2.4", Folding
WTB ST, 27mm ID, 32H
WTB Solano Med, 142x240 mm, Steel Rails
TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
Norco Alloy Nutted Clamp, 34.9mm ID
microSHIFT Advent, 9spd
Norco 6061, 35mm Length, 31.8mm Clamp
