CUSHCORE 29 PAIR
$269.95

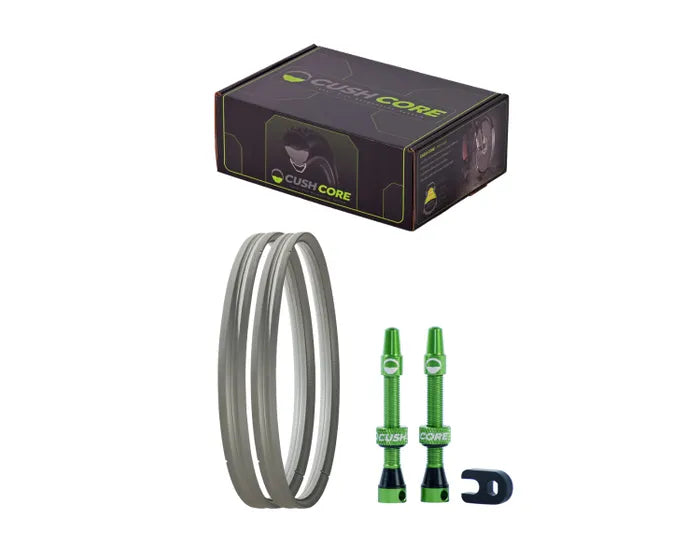

The CushCore is an engineered foam insert that sits inside a mountain bike tyre against the rim to prevent pinch flats, acting as an awesome damper and reducing the sudden unwanted spring back that you get from normal pneumatic tyres. It does this by dividing the inner volume of the tyre in half with air underneath the tread as normal and the CushCore insert next to the rim.
The CushCore absorbs shock to protect your rim from sudden impacts and prevent pinch flats and support sidewalls to eliminate excessive tyre roll in corners, so that you can run lighter tyres for aggressive riding. It also acts as a mechanical bead lock, anchoring the bead inside the rim so that tyre burping is highly unlikely.
Designed to be used with tubeless-ready or tubeless converted mountain bike rims and tyres, it is made to be waterproof, compatible with tubeless tyre sealant, and tuned for an appropriate rebound feel. Unlike most puncture protection systems, the foam will last longer than a single impact. The ability to withstand repeated impacts without damage is typical of far heavier foams" giving this kit a significant edge.
Specifications
CushCore is compatible with your current tubeless tires and rims
Standard Size
Fits 26", 27.5", 29" wheel diameters
Fits tire widths 2.1 - 2.6"
Fits internal rim width 22 - 35mm
PLUS Size
Fits 27.5" wheel diameter
Fits tire widths 2.6 - 3.0"
Fits internal rim width 32 - 45mm
If your wheels are not tubeless ready" rim sealing tape will be required
We recommend the use of tubeless tire sealant (such as Stan's) with CushCore
Installation with certain tire & wheel combinations may require two people, one to work the tire levers, and another to hold the tire bead in the drop center of the rim. Wire bead downhill tires are most likely to need extra help.
WEIGHT
CushCore weighs about as much as a standard butyl inner tube
27.5" insert - 250 grams
29" insert - 260 grams
27.5PLUS - 290 grams
Potential weight reduction offset by using lighter tires and rims: 100-700 grams
The CushCore absorbs shock to protect your rim from sudden impacts and prevent pinch flats and support sidewalls to eliminate excessive tyre roll in corners, so that you can run lighter tyres for aggressive riding. It also acts as a mechanical bead lock, anchoring the bead inside the rim so that tyre burping is highly unlikely.
Designed to be used with tubeless-ready or tubeless converted mountain bike rims and tyres, it is made to be waterproof, compatible with tubeless tyre sealant, and tuned for an appropriate rebound feel. Unlike most puncture protection systems, the foam will last longer than a single impact. The ability to withstand repeated impacts without damage is typical of far heavier foams" giving this kit a significant edge.
Specifications
CushCore is compatible with your current tubeless tires and rims
Standard Size
Fits 26", 27.5", 29" wheel diameters
Fits tire widths 2.1 - 2.6"
Fits internal rim width 22 - 35mm
PLUS Size
Fits 27.5" wheel diameter
Fits tire widths 2.6 - 3.0"
Fits internal rim width 32 - 45mm
If your wheels are not tubeless ready" rim sealing tape will be required
We recommend the use of tubeless tire sealant (such as Stan's) with CushCore
Installation with certain tire & wheel combinations may require two people, one to work the tire levers, and another to hold the tire bead in the drop center of the rim. Wire bead downhill tires are most likely to need extra help.
WEIGHT
CushCore weighs about as much as a standard butyl inner tube
27.5" insert - 250 grams
29" insert - 260 grams
27.5PLUS - 290 grams
Potential weight reduction offset by using lighter tires and rims: 100-700 grams
